Fluidra
Astral Pool Viron eQuilibrium Salt Chlorinator with bluetooth
Astral Pool Viron eQuilibrium Salt Chlorinator with bluetooth
Couldn't load pickup availability

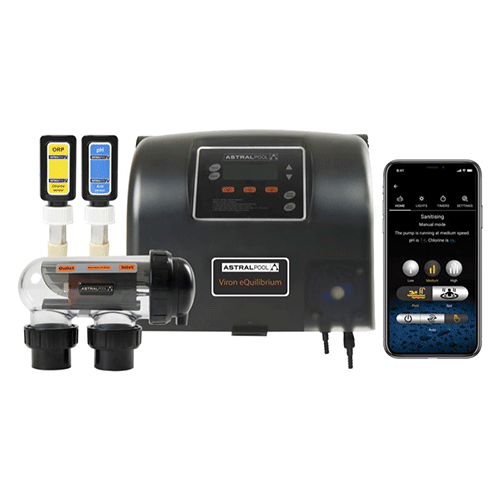

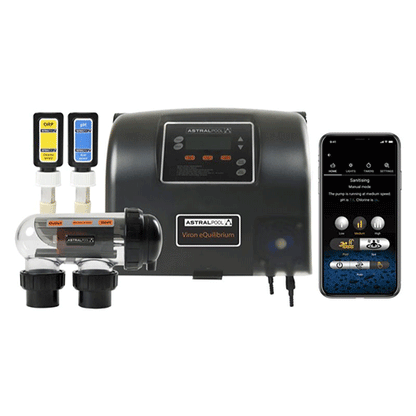

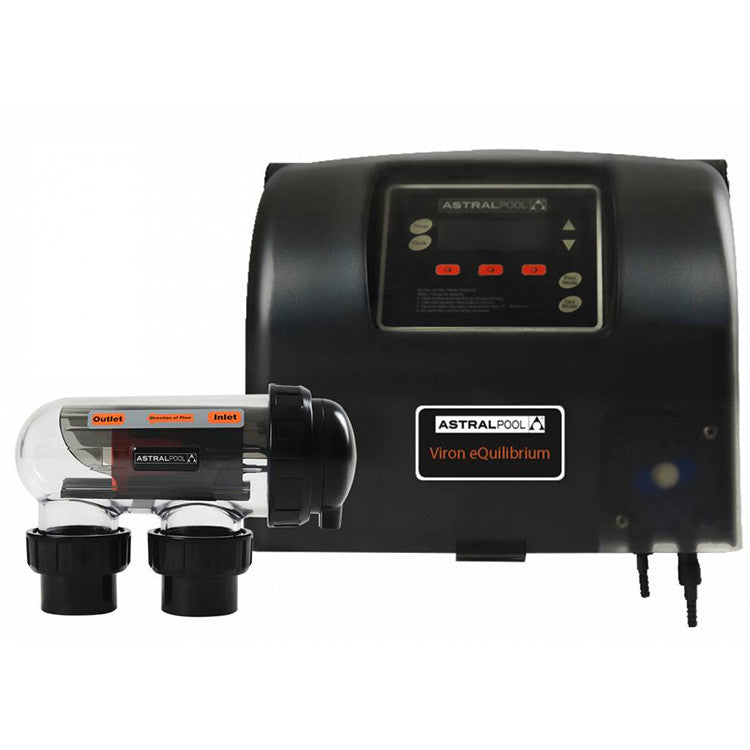

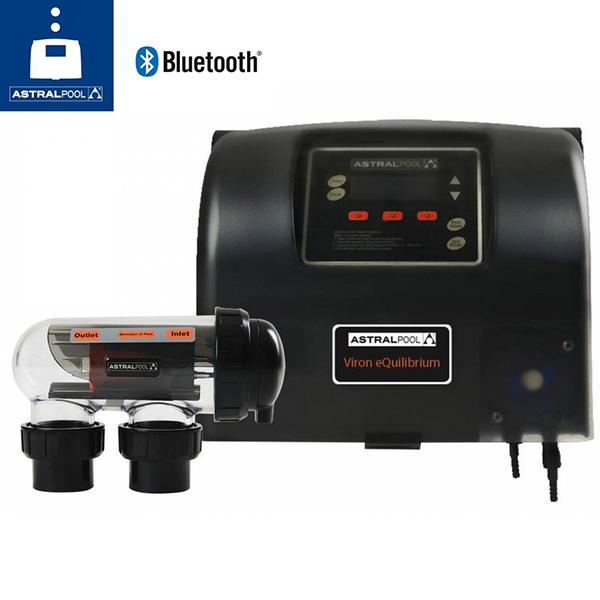

Viron eQuilibrium Chlorinator
The Viron eQuilibrium Chlorinator provides a range of options to minimise or eliminate the change in water balance. These options dramatically reduce manual water testing, maintenance, or corrective actions required for your pool water. The Viron eQuilibrium Chlorinator can even test, monitor, and maintain the perfect level sanitiser and pH balance to keep your pool safe, healthy, and looking great.
The Viron eQuilibrium Chlorinator is suitable for salt and minerals.

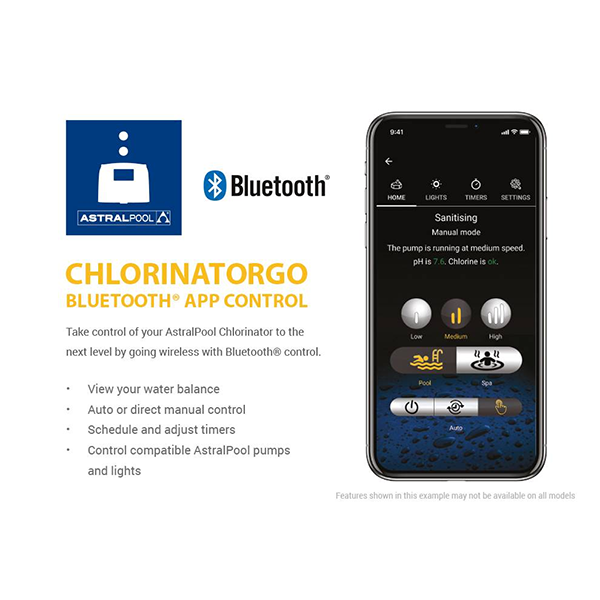

Bluetooth APP Control which allows:-
- View your water balance
- Auto or direct manual control
- Schedule and adjust timers
- Control compatible Astral Pool pumps (i.e., speed of pump) and compatible lights (up to 4 lights)
Model Versions and Options
The EQuilibrium Salt Chlorinator is available in different versions and 4 different sizes.
1. Semi-Automatic pH Control - intelligent software adjusts the dose rate of acid depending upon electrode output.
2. A PH Sensor Kit- a probe in the pool pipe tests the pH and adds acid as required.
3. Chlorine Sensor Kit - automatically controls the chlorine level in the pool. If the Viron eQuilibrium salt chlorinator is used in conjunction with a Viron Pool Pump; pool owners can set the system to run in intelligent Ai mode.
In Ai Mode, the chlorinator will check the water chemistry and automatically adjust the pump speed to ensure perfect water chemistry. Once there has been a complete turnover of the pool water and the chemistry is correct, the pump will return to an energy-efficient level.
For more details, please visit Astral Pool eQuilibrium Chlorinator Page.
Advice
Revitalise your pool with the best solution from www.poolcompany.com.au! Whether you need to replace your old Chlorinator or find a new Chlorination system, our passionate team is here to meet your expectations and offer expert advice. Trust us to make your pool experience incredible.
Installation
Need help with installation? Don't hesitate to contact us at 0416 767 822 and schedule the installation of an Astral EQ Chlorinator in your area today!
Specifications
Model No. |
EQ18 |
EQ25 |
EQ35 |
EQ45 |
|---|---|---|---|---|
| Pool Coverage | ||||
| Chlorine output/hour | 18 gms/hr | 25 gms/hr | 35 gms/hr | 45 gms/hr |
| Pool volume (temperate climate) | 50,000L | 96,000L | 130,000L | 170,000L |
| Pool volume (tropical climate) | 40,000L | 60,000L | 80,000L | 105,000L |
| Salt levels | 3000 to 8000 ppm | 3000 to 8000 ppm | 3000 to 8000 ppm | 3000 to 8000 ppm |
| Recommended salt levels | 4000 ppm | 4000 ppm | 4000 ppm | 4000 ppm |
| Max filter pump current draw | 8.5 amps | 8.5 amps | 8.5 amps | 8.5 amps |
| Max acid dosing in auto mode | 400ml/hr | 400ml/hr | 400ml/hr | 400ml/hr |
| Max acid dosing in manual mode | 900ml/hr | 900ml/hr | 900ml/hr | 900ml/hr |
| Programming | ||||
| Clock timer settings | 4 timers + 2 light timers | 4 timers + 2 light timers | 4 timers + 2 light timers | 4 timers + 2 light timers |
Manual
Brochure
Warranty
Your Viron eQuilibrium Chlorinator is covered by 5 year warranty on the cell, 5 year pro-rata warranty on the controller and 12 month warranty on the sensors. For more information go to astralpool.com.au
Videos
Viron eQuilibrium with Bluetooth
Install Menu Part 1
Install Menu Part 2
Setting pH & Chlorine Levels
Setting the Clock
Probe & RJ12 Installation
Setting Timers for Ai Mode
Statistics Feature
Mixing Cells & Dosing Point
Viron eQuilibrium Chlorinator Videos
