Pentair / Onga Pool Pumps

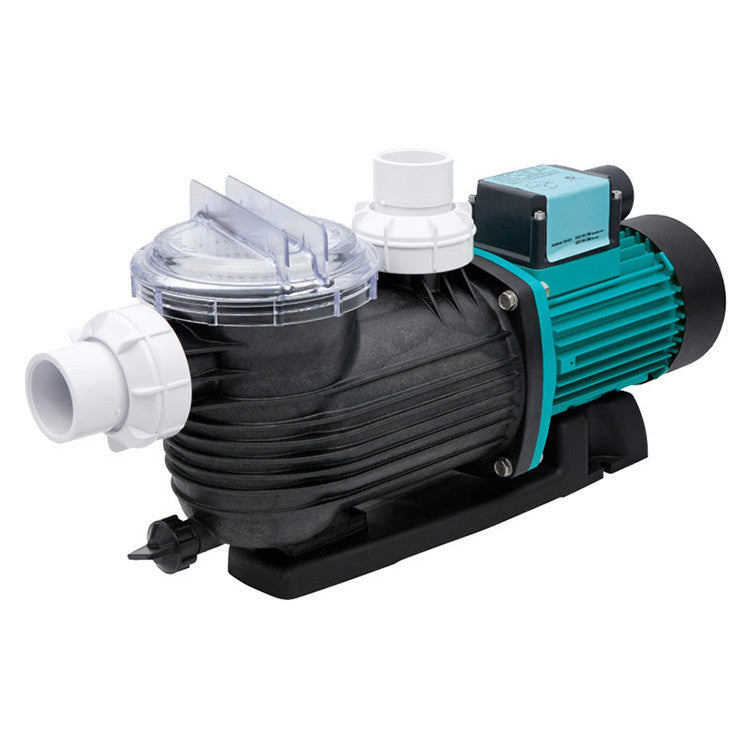

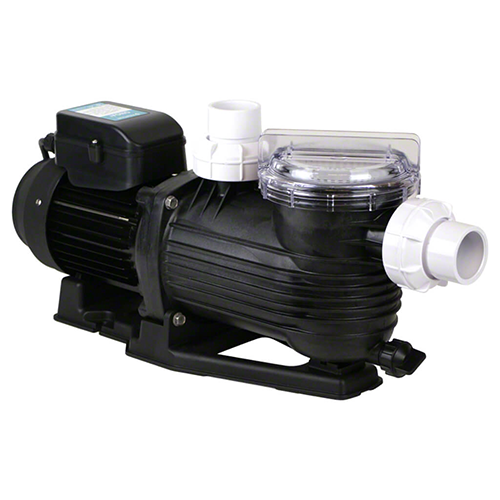

Pentair / Onga PPP550, PPP750, PPP1100, PPP1500 Pool Pumps

Pentair / Onga Pool Pumps are meticulously crafted and built to the highest standards, ensuring safe and long-lasting performance. The cutting-edge design of these pumps includes advanced features for optimal efficiency and reliability. With a durable stainless steel shaft and mechanical seal, these pumps offer exceptional value. The innovative wet end design features a molded end-shield cover and lip seal, safeguarding the motor from potential water damage. Whether for in-ground or above ground pools, this range is the ideal choice.

Warranty

• 3 Years Parts
• 1 Year Labour

Features & Benefits

• Elevated motor
• Stainless Steel shaft and mechanical seal
• Large Hair & Lint pot
• Self- aligning barrel unions for easy installation
• Australian Standard AS/NZS 60335.2.41 approved within wetted zone

Typical Applications

• Quality in ground pool installations
• Above ground pools

For more information Please visit http://www.pentairpool.com.au

Manual

Onga Pantera Pool Pump Manual

Brochure

Onga Pantera Pool Pump Brochure

Specifications

Technical Data

Inlet

• ABS Barrel union to suit 40mm PVC pipe internal
• ABS Barrel union to suit 50mm PVC Socket external

Outlet

• ABS Barrel union to suit 40mm PVC pipe internal
• ABS Barrel union to suit 50mm PVC Socket external

Max. Pump Pressure195 kPa Max.

Working Pressure 295 kPa

Water Temperature Range 4- 45 degrees

Max Ambient Temperature 55 degrees

IP Rating P55

Electrical Rating

• 240 Volt single phase are supplied as standard with built in thermal overload protection and are designed to plug directly into a 10 amp domestic power supply to local electrical authority specifications.

Optimal pH Range 7.2 - 7.8 (Guide Only)

Warranty

Onga Pantera Pool Pumps Warranty
